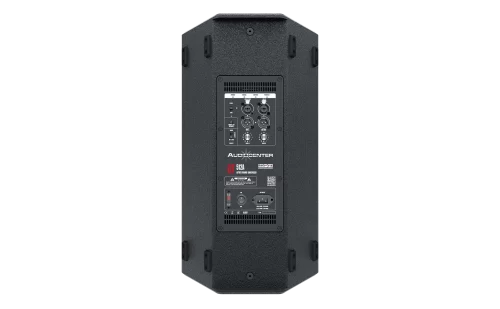

The GT508A speaker has two combo inputs (2-way XLR and Mono jack 6.35). The CH A input can be switched between line balanced input or microphone input. The two audio sources can be internally mixed and output as a balanced output, transmitting the signal to multiple speakers for easy system signal cascading distribution.
The cabinet is made of high-quality wood, with an innovative and compact multi-purpose symmetrical cabinet structure CNC wachined. This provides clear and powerful perfect sound quality. The base mounting holes are available in 0° or 10° options. According to different installation locations and methods, the cabinet can meet different sound reinforcement installation environments.
|
Type |
Active DSP-controlled full range loudspeaker |
|
Frequency Response(-10dB) |
65Hz-20kHz |
|
Horizontal Coverage |
90°/60° |
|
Vertical Coverage |
60°/90° |
|
Maximum Calculated SPL/1M (Continuous/Peak) |
119dB/125dB |
|
HF Driver |
Customized driver, 1.75” voice coil and 1.0”exit |
|
LF Driver |
Customized 8” driver, 2.0” voice coil |
|
DSP |
|
|
Processor |
48kHz signal sampling frequency,FIR filtering |
|
Presets |
MAIN,SPEECH,W/SUB |
|
AMPLIFIER |
|
|
Amplifier Circuitry |
Class D |
|
Power (RMS standards) |
1100W |
|
Peak Power |
2200W |
|
Frequency Response(1W 8Ω 2ch) |
20Hz-20kHz(±0.5dB) |
|
Intermodulation Distortion |
＜0.05% |
|
Total Harmonic Distortion |
＜0.05% |
|
Cooling System |
Cooling with fans, air convection |
|
Protection |
DC protection, short circuit protection, overheat protection, input overload protection, output overload protection, soft startup protection, overvoltage protection, undervoltage protection |
|
Signal Input |
Female XLR(Mono jack 6.35) |
|
Signal Output |
Male XLR |
|
Power Input |
IEC power connector |
|
Working Voltage |
100-130V~ or 220-240V~ (±10%,50/60Hz） |
|
Power consumption (1/8 output power) |
50W |
|
CABINET |
|
|
Cabinet Material |
CNC machined plywood |
|
Coating |
Durable Polyurea Coating |
|
Cabinet Color |
Black is the default color. Contact Audiocenter for customization |
|
Grille |
Iron mesh |
|
Handles |
1 top |
|

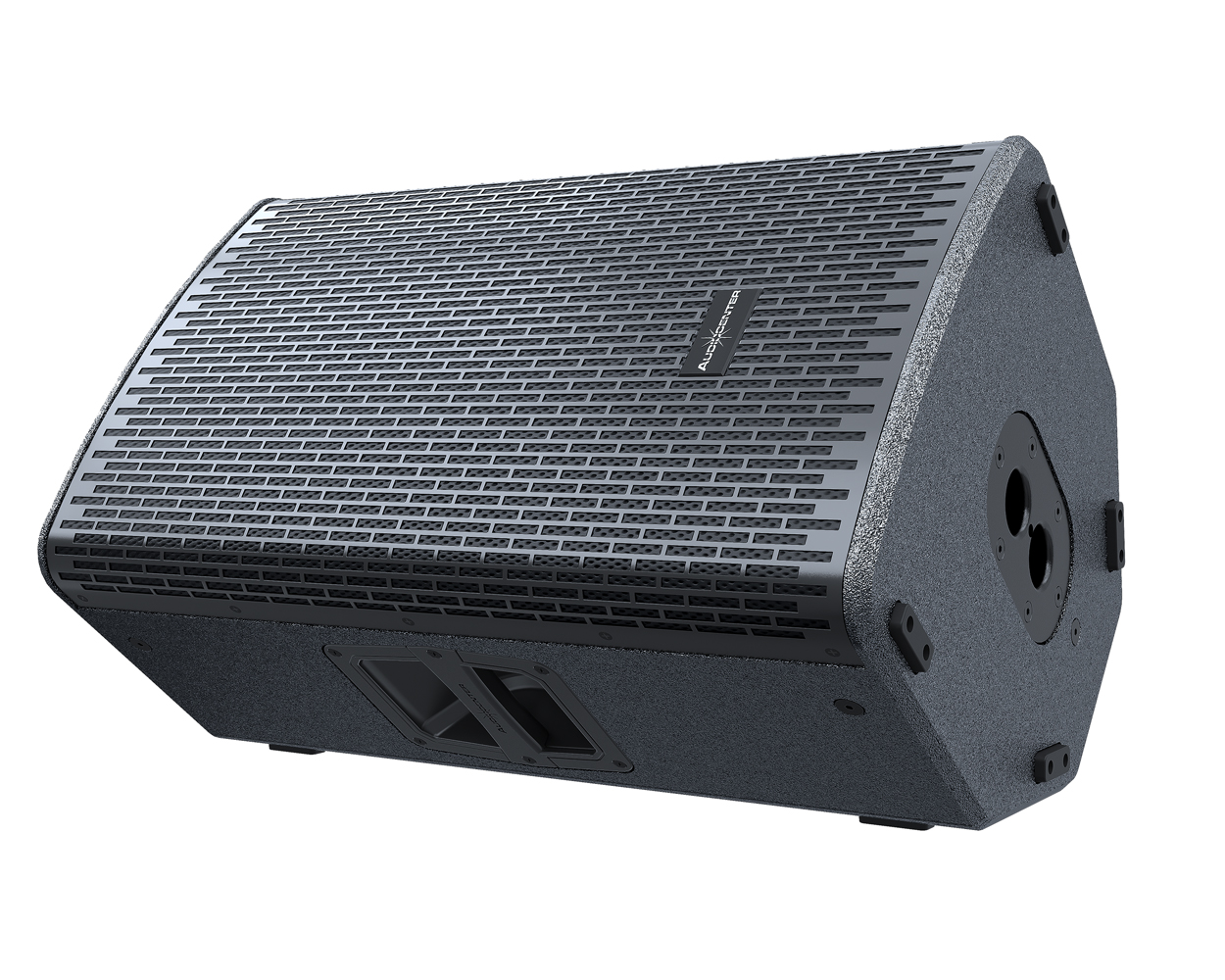

Monitor Angle |
/ |
|

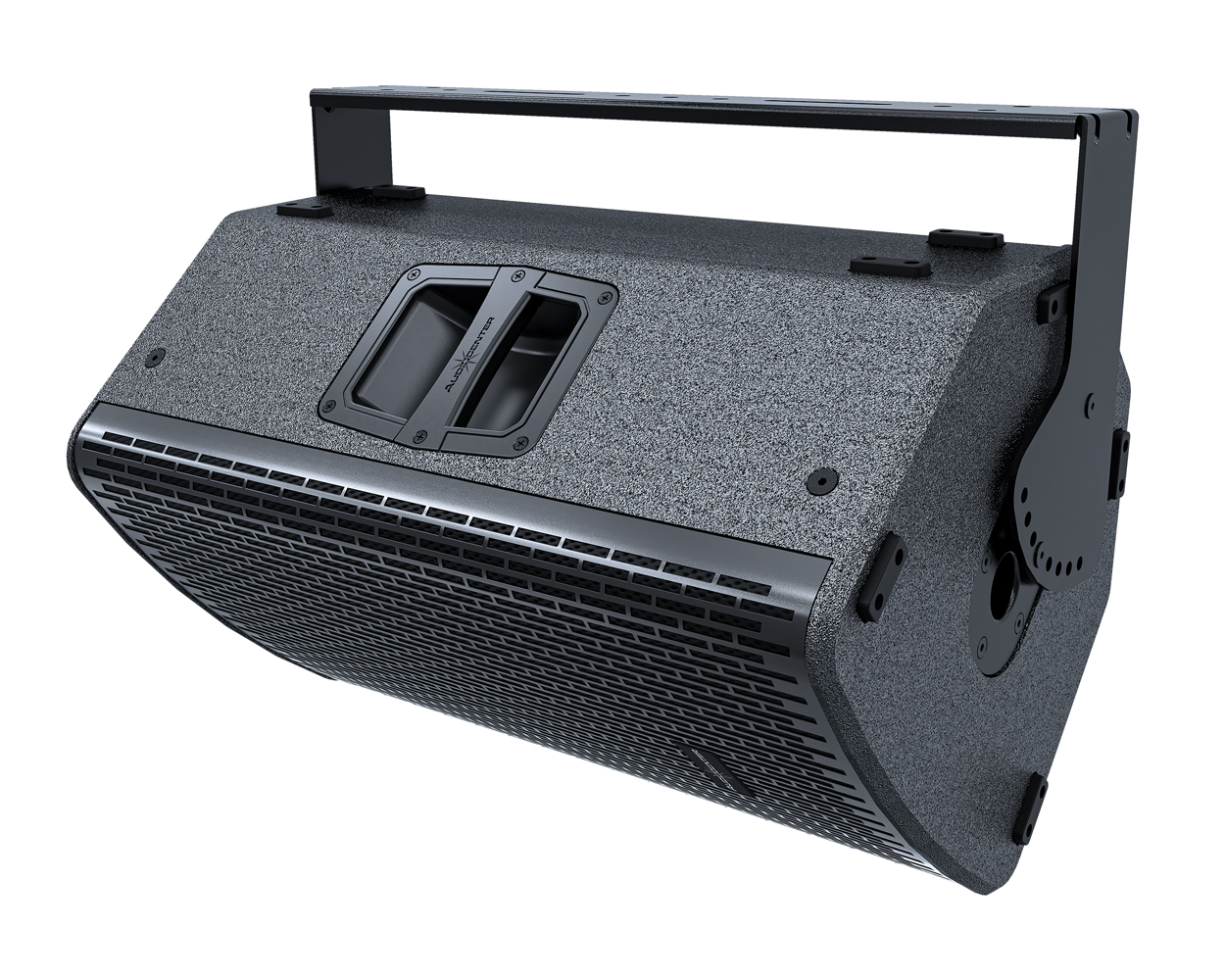

Hanging Hardwares |
M8 screw |
|
Pole Mount |
Base hole Φ35mm，0° or 10° options |
|
Speaker Dimension (W×H×D) |
245x447x320mm |
|
Carton Dimension (W×H×D) |
336×531×410mm |
|
Net Weight |
13.0kg |
|
Shipping Weight |
15.0kg |
