LA288

  • 2-WAY DUAL 8"  PASSIVE LINE ARRAY
  • 2X8” (200mm)/2” voice coil LF driver
  • 1x1” (25mm)/1.76” voice coil Neo HF driver
  • RATED POWER: 600W
  • IMPEDANCE: 8 ohms
  • FREQUENCY RESPONSE: 75Hz-18kHz
  • MAXIMUM SPL: 119dB
  • WHATSAPP CATALOG AND PRICE

LA288

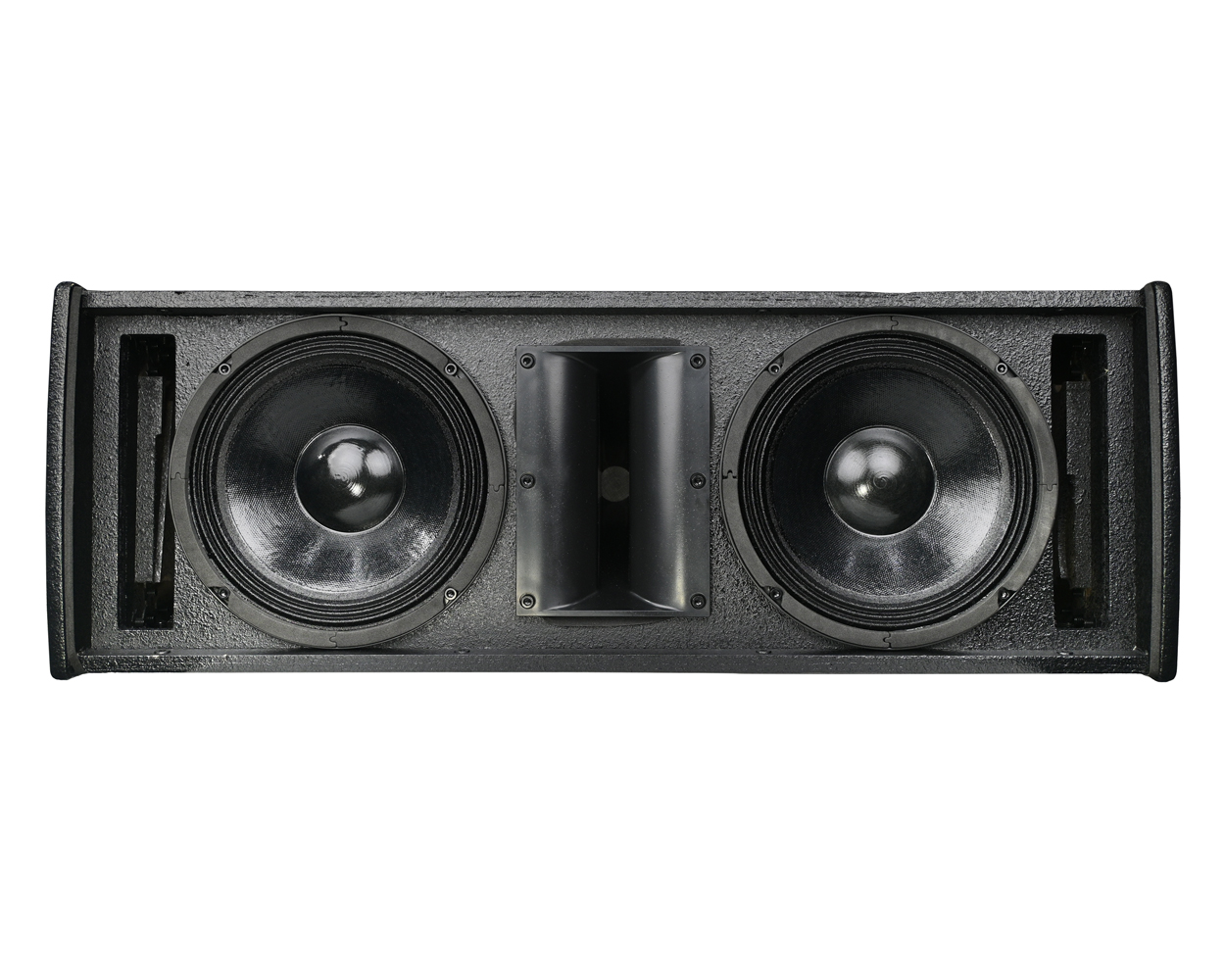

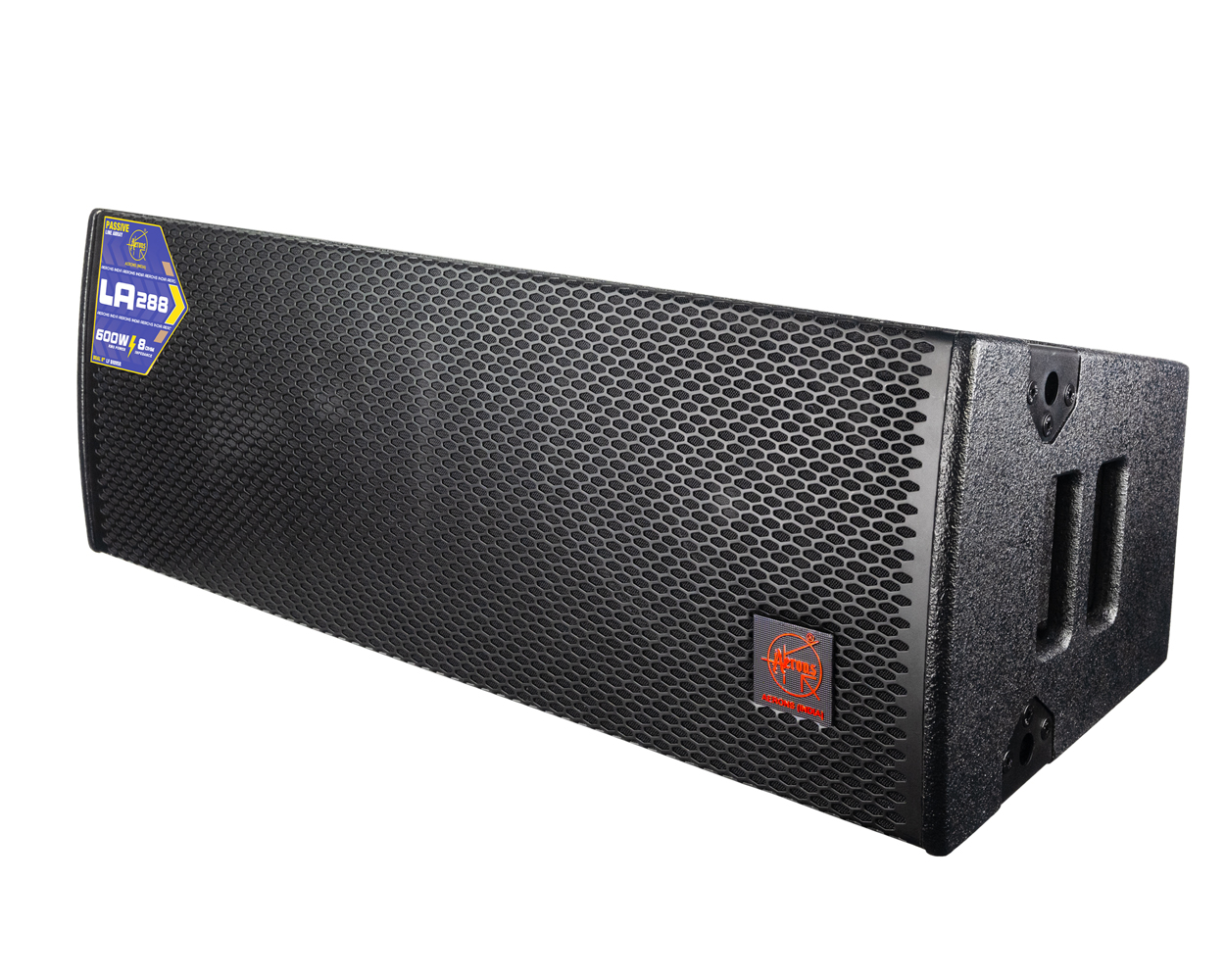

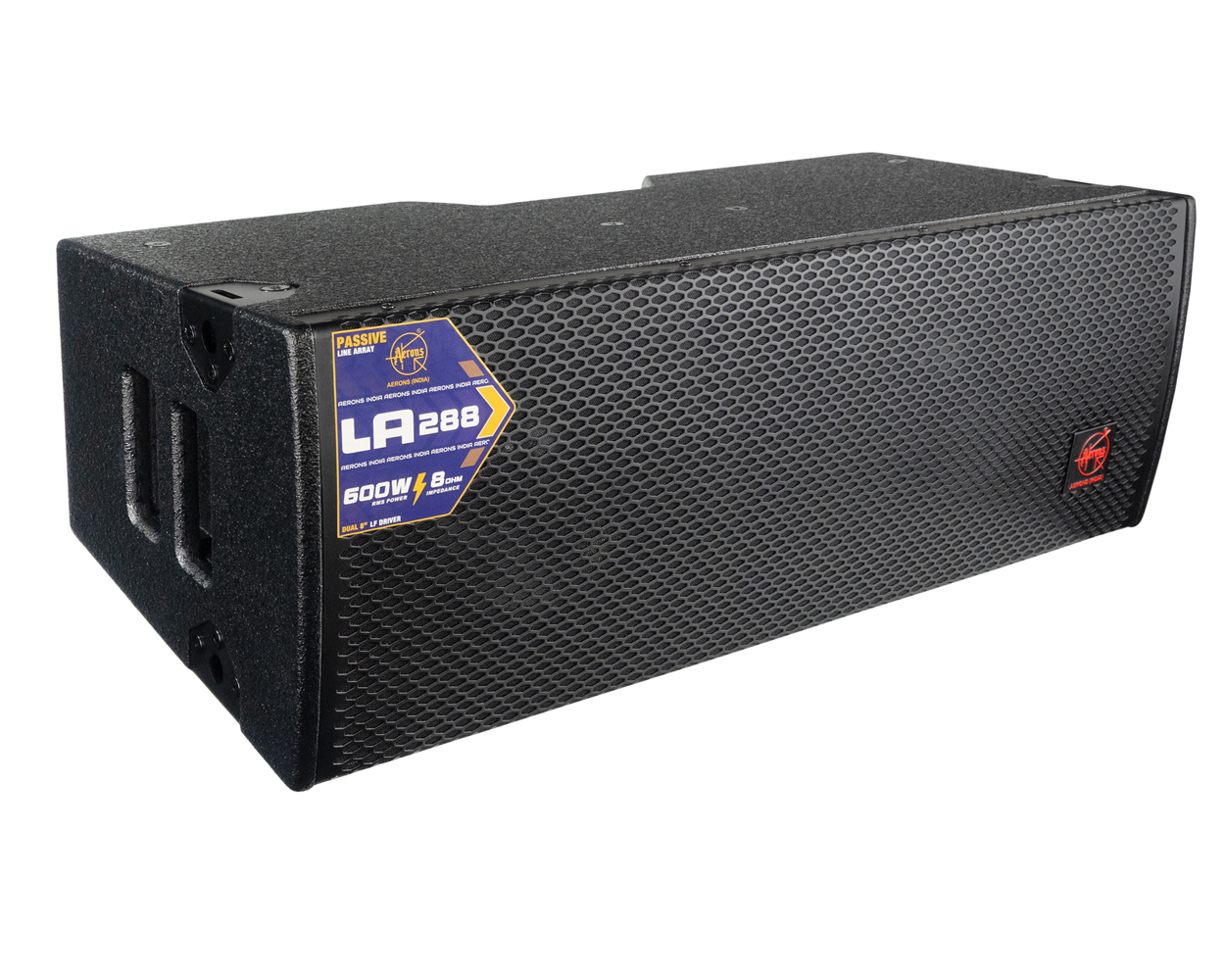

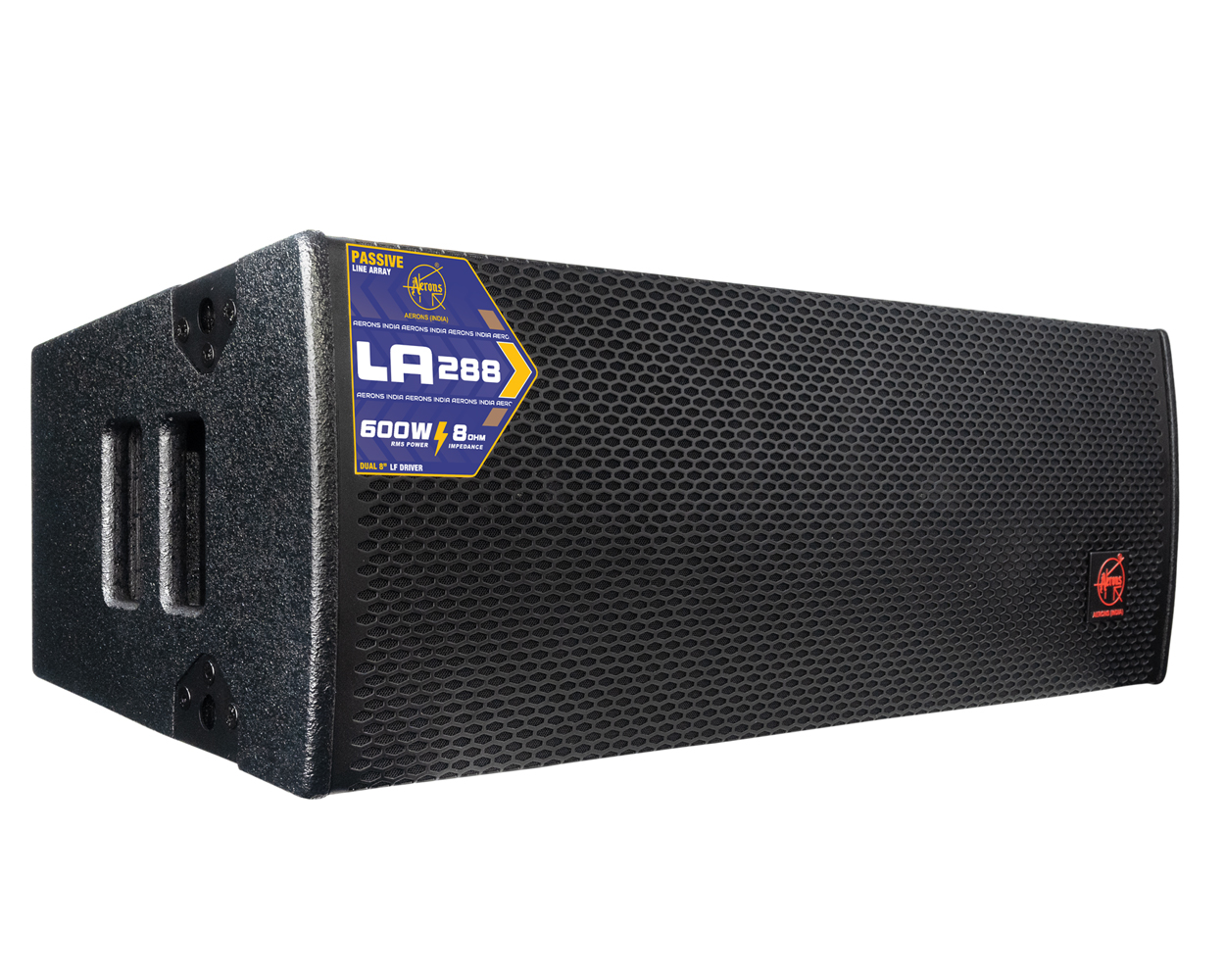

LA288 – Dual 8" Passive Line Array Speaker
The LA288 is a high-performance dual 8-inch passive line array speaker, purpose-built for professional sound reinforcement in both live and fixed installations. Designed to deliver a powerful acoustic experience in a compact form factor, it provides exceptional clarity in the highs and solid, defined lows.
Equipped with advanced neodymium compression HF drivers and precision-engineered LF drivers, the La288 ensures a well-balanced, articulate sound profile suitable for demanding environments. Its robust birch plywood enclosure, coated in a premium black finish, guarantees durability, aesthetics, and long-term reliability.

Key Features
- Dual 8-inch LF drivers with 2-inch voice coils for tight, punchy bass and extended low-frequency accuracy.
- 1.76-inch Neodymium HF compression driver ensures clear and articulate high-frequency performance.
- 600W RMS power handling, engineered for consistent, long-term performance.
- Wide frequency response from 75Hz to 18kHz for even, full-range coverage.
- Max SPL: 119dB, delivering high output levels for large venues and dynamic live setups.
- Impedance: 8 ohms – optimized for flexible integration in multiple speaker configurations.
- Premium birch plywood cabinet with a durable black paint finish for professional appearance and road-ready resilience.

LA288

FREQUENCY RESPONSE

 75Hz- 18kHz

DRIVERS

2X8” (200mm)/2” voice coil LF driver

1x1” (25mm)/ 1.76” voice coil neo-HF driver

RATED POWER

600W RMS

PEAK POWER

2400W PEAK

SENSITIVITY

98Db 1watt/1Metre

SPL

113dB

MAXIMUM SPL

 119dB

IMPEDANCE

 8Ω



DISPERSION (-6dB)

Horizontal Coverage: 100°

Vertical Coverage: varies, Depending on array length and configuration

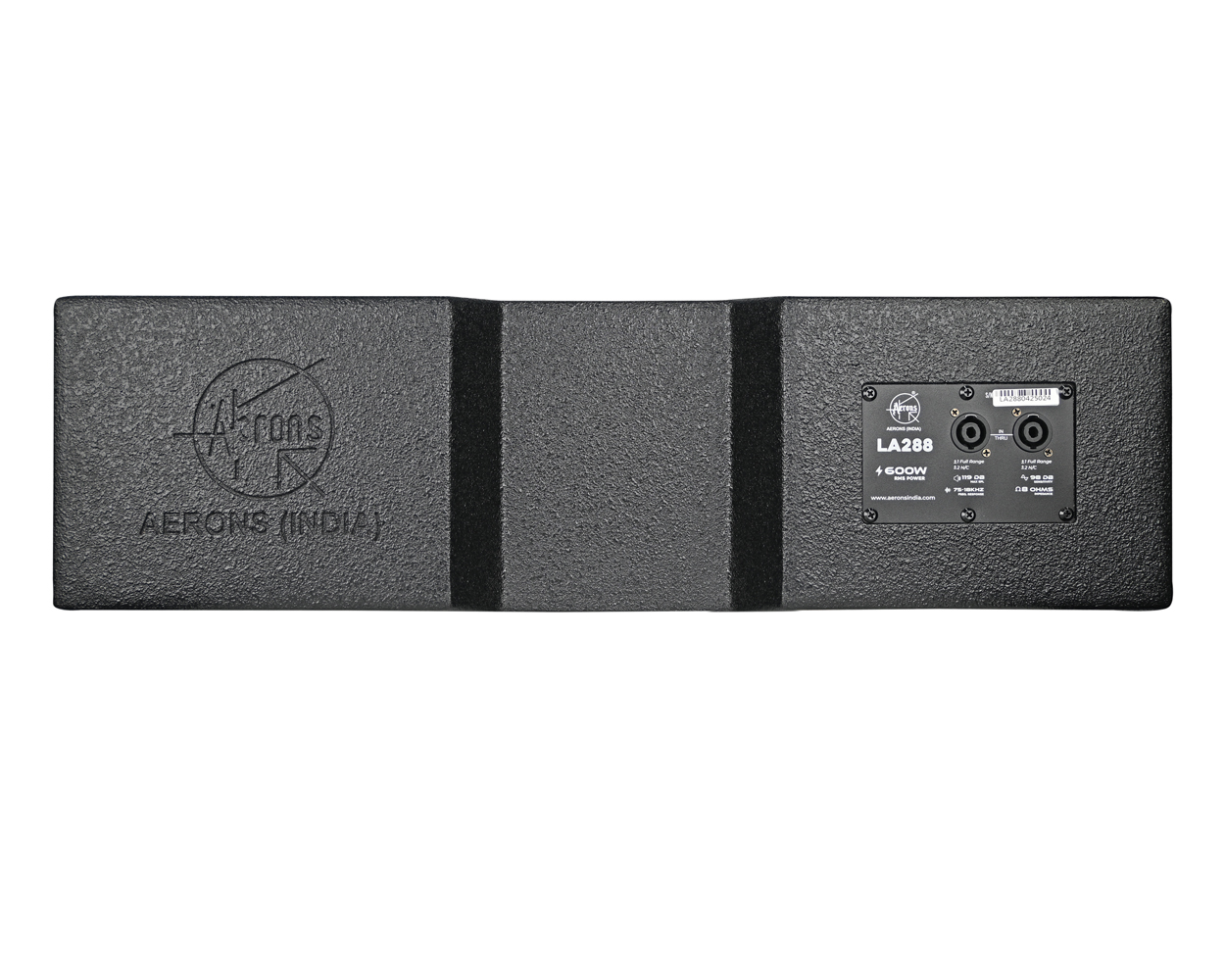

CONNECTORS

2XSpeakON NL4

DIMENSIONS

393mm X 320mm X 748mm

WEIGHT

18 KGS
