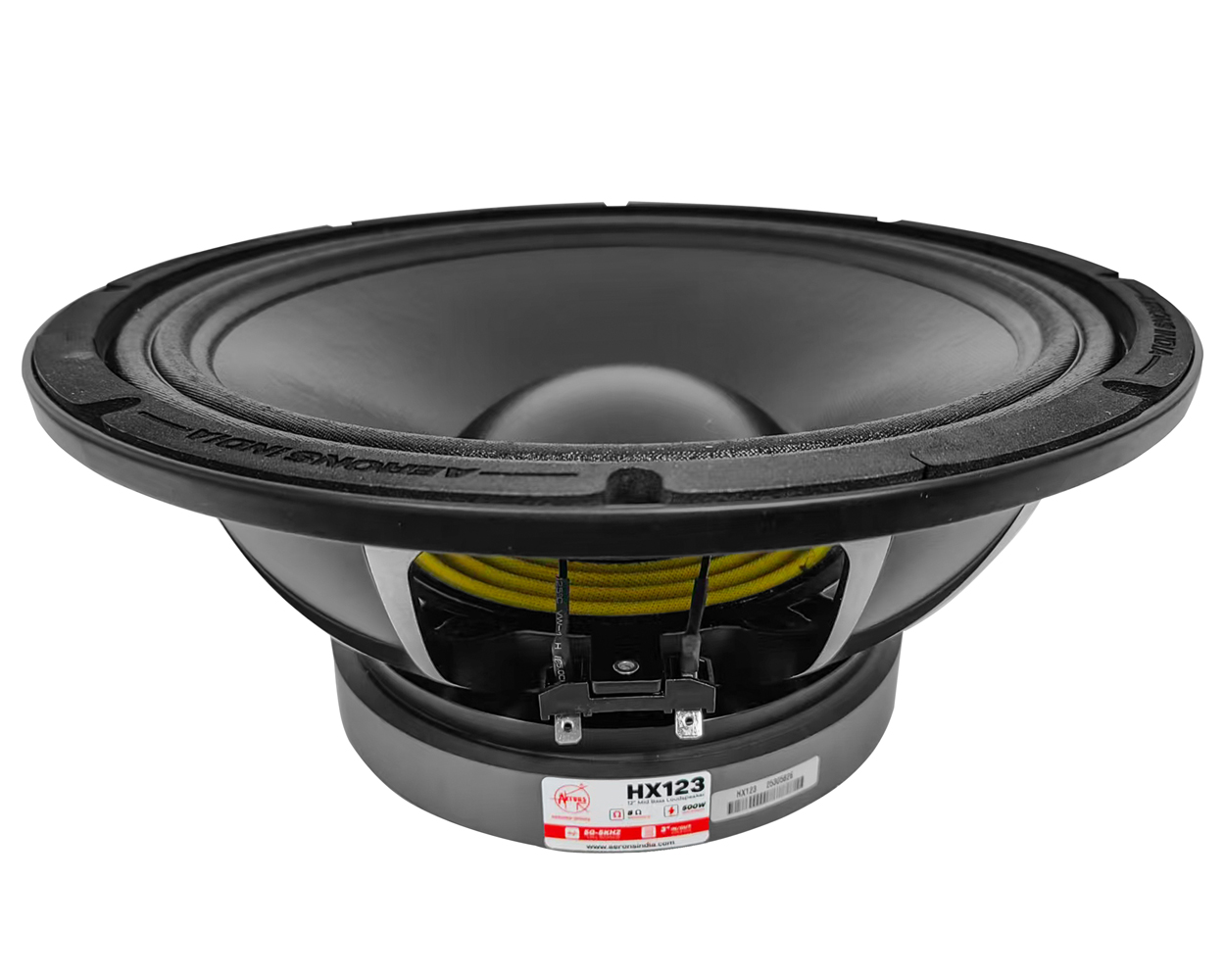

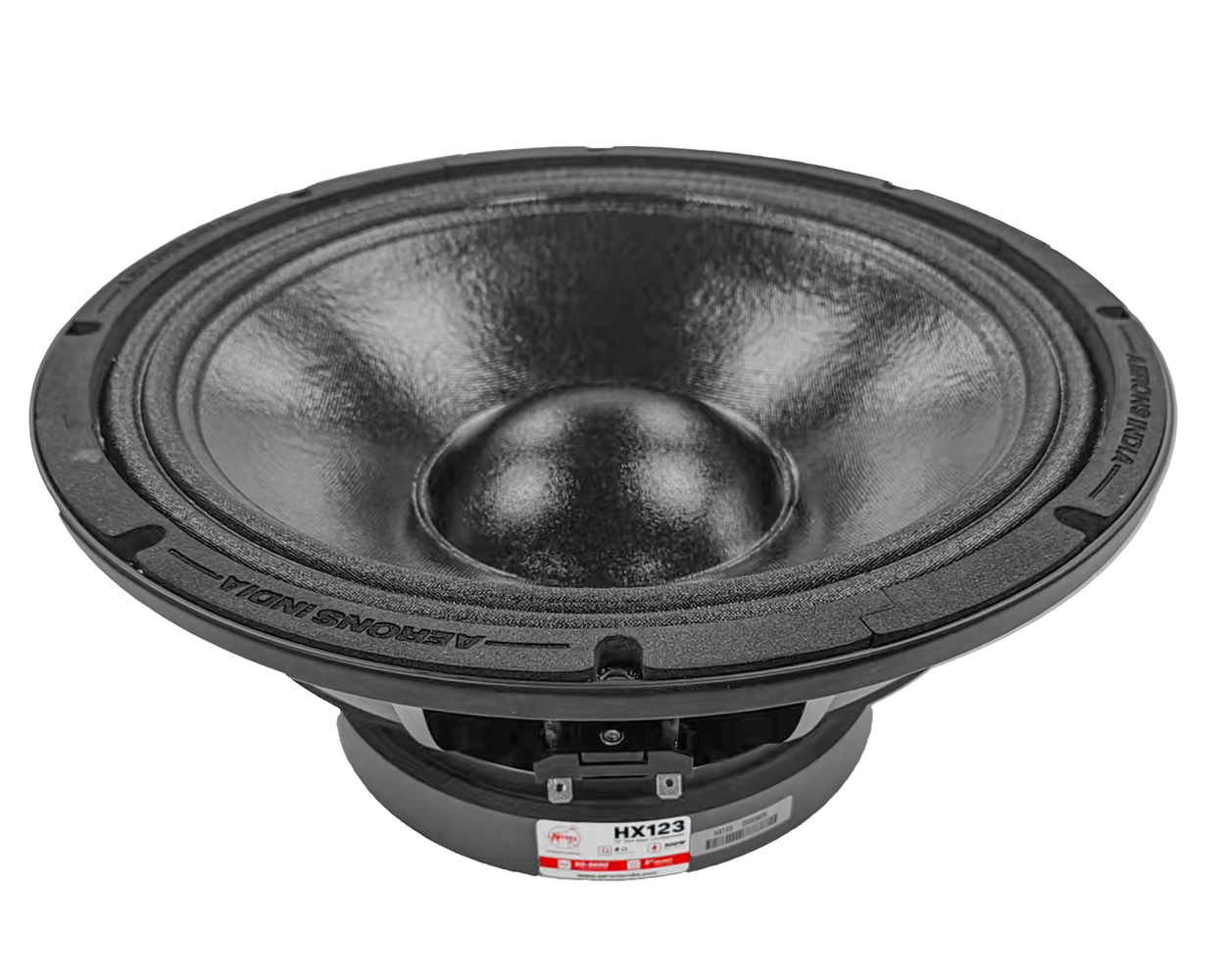

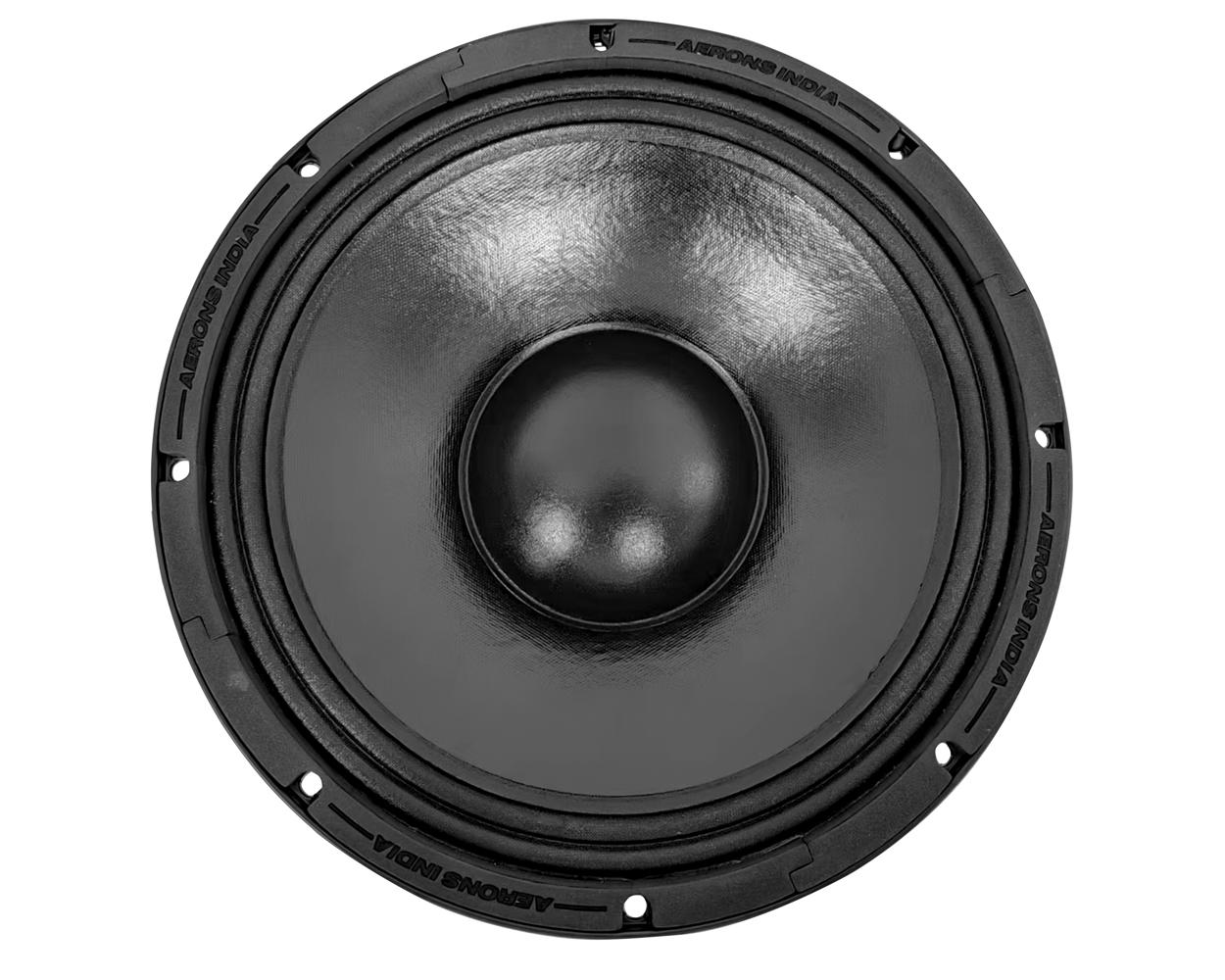

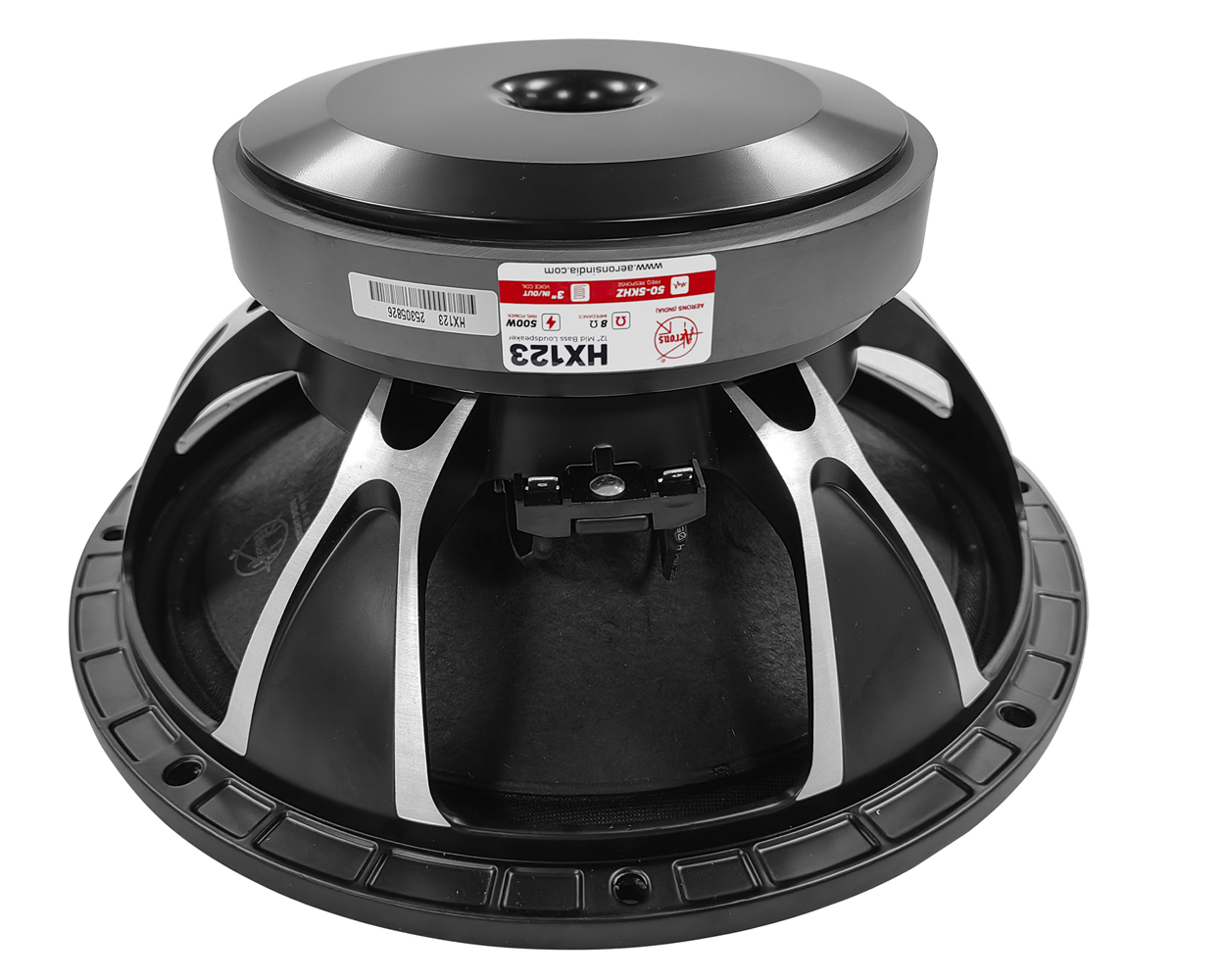

The AERONS HX123 is a high-performance 12-inch mid loudspeaker crafted for clear, detailed and natural mid-range output. Built with an exclusive heavy-duty chassis, it ensures strong durability and stable performance even in continuous use. Delivering 500W RMS power, the HX123 covers a wide 50Hz–5kHz frequency range, making it ideal for rich mids and smooth, expressive vocals. Its 3-inch in/out voice coil provides excellent heat handling, while the 8-ohm impedance ensures broad amplifier compatibility. The HX123 is a reliable choice for professional PA systems requiring clean mid clarity and consistent sound quality.
|
Nominal Diameter |
12inch |
|
Nominal Impedance |
8ohm |
|
Minimum Impedance |
5.2 ohm |
|
Nominal Power Handling |
500Watts |
|
Continuous Power Handling |
1000Watts |
|
Sensitivity |
98dB |
|
Frequency Range |
50-5000Hz |
|
Voice-coil Diameter |
76.2mm |
|
Voice-coil Material |
CCAW |
|
Voice-coil Winding Depth |
18 mm |
|
Effective Diaphragm Diameter |
260Mm |
|
Kind of layer |
In/out |
|
Number of layers |
2 |
|
Top Plate Thickness |
10mm |
|
Spider |
Silicon Spider |
|
Flux Density |
1.25T |
|
Magnet Diameter |
190*25mm |
|
Magnet Material |
Ferrite |
|
Magnet Grade |
Y35 |
|
Magnet Gap Depth |
10mm |
|
Resonance Frequency |
Fs |
50Hz |
|
DC Resistance |
Rte |
5.2 ohm |
|
Mechanical Factor |
Qms |
8.65 |
|
Electrical Factor |
Qes |
0.331 |
|
Total Factor |
Qts |
0.319 |
|
BL Factor |
BL |
19.02 T-m |
|
Effective Moving Mass |
Mms |
67.95gr |
|
Equivalent Cas Air Load |
Vas |
60.35liter |
|
Effective Piston Area |
Sd |
0.530 m’2 |
|
Max. Linear Excursion |
Xmax |
4.2 mm |
|
Half Space Efficiency |
Eff |
2.31% |
|
Efficiency Bandwith Product |
EBP |
150.568 |
|
Compliance Value |
CMS |
0.133mm |
|
Overall Diameter |
315mm |
|
Buffer Cut-out Dia. |
280mm |
|
Bolt Circle Dia. |
297mm |
|
Bolt Hole Dia. |
7 mm |
|
Overall Depth |
143mm |
|
Magnet Dia. |
190mm |
|
Net Weight |
7.9 kg |
