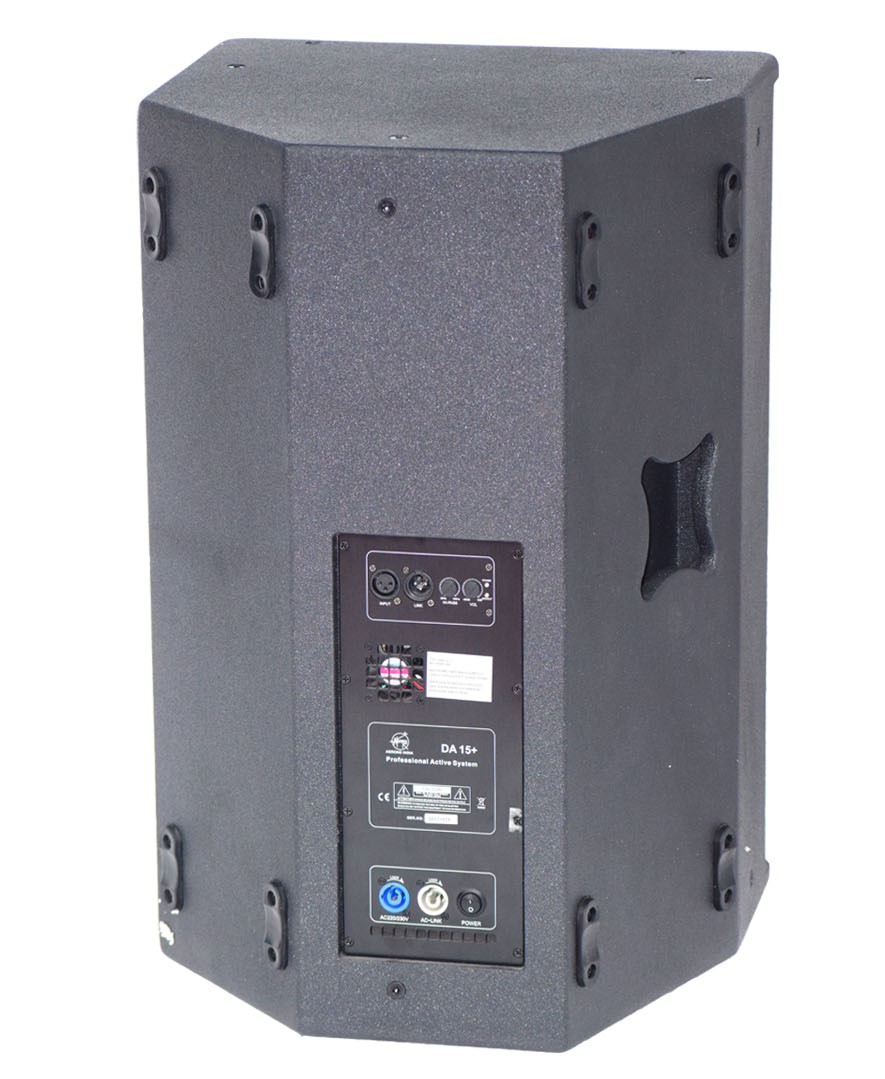

DA 15+

Integrates an 8” LF and 1” Titanium HF to deliver high SPL and a wide dispersion area
550W RMS power for the amplifier with a loud 130dB peak SPL
Multi-angle plywood enclosure
Wide-bandwidth system
Rotatable 90°×40°horn
Mid-high frequency's sensitivity can be adjusted
Flexible mounting options
Top hat fitting for tripod
Active amplified speaker – no additional amplifier needed.

RMS Power	550W
Peak Power	2200W
Drivers	1x15” LF with 3” voice coil 1x1” HF with 1.7” voice coil
Frequency Response	40Hz – 18KHz
Sensitivity	98dB 1 Watt/1 meter
SPL	124dB
Peak SPL	130dB
Impedance	8 ohms
Dispersion	90°X40°
Crossover	2 kHz passive
Connectors	2 x Speakon NL4
Fittings	13xM8 thread inserts, 1xTop hat fitting
Dimensions	(W) 460mm X (D)429mm X (H) 690mm
Weight	28.5 Kg /pc
