PRO185F04

  • 2000W RMS POWER
  • 36-1.5KHz Frequency range
  • 5.2 inch Voice coil
  • 97.0dB Sensitivity
  • Optimized magnet and FEA analyse
  • WHATSAPP CATALOG AND PRICE

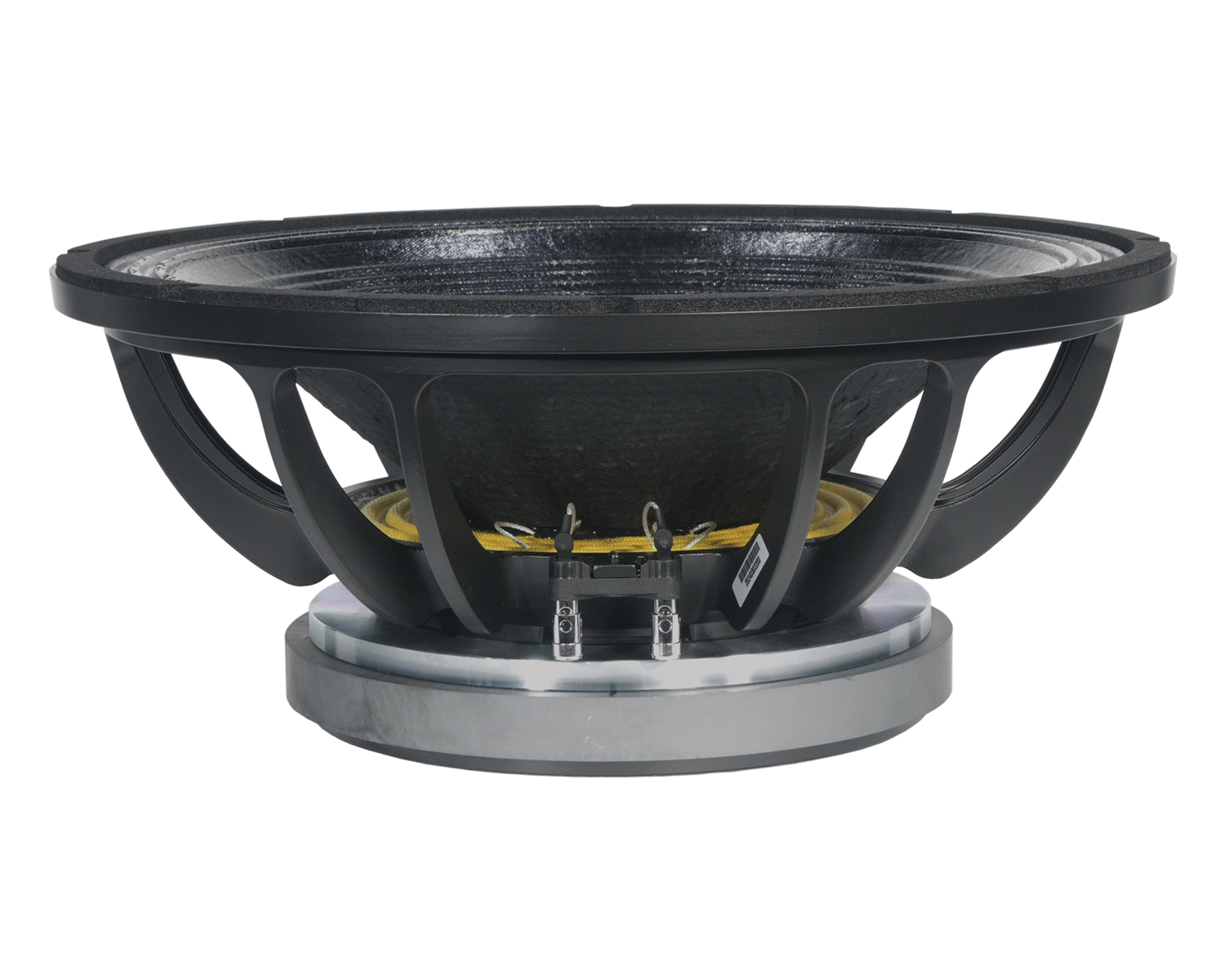

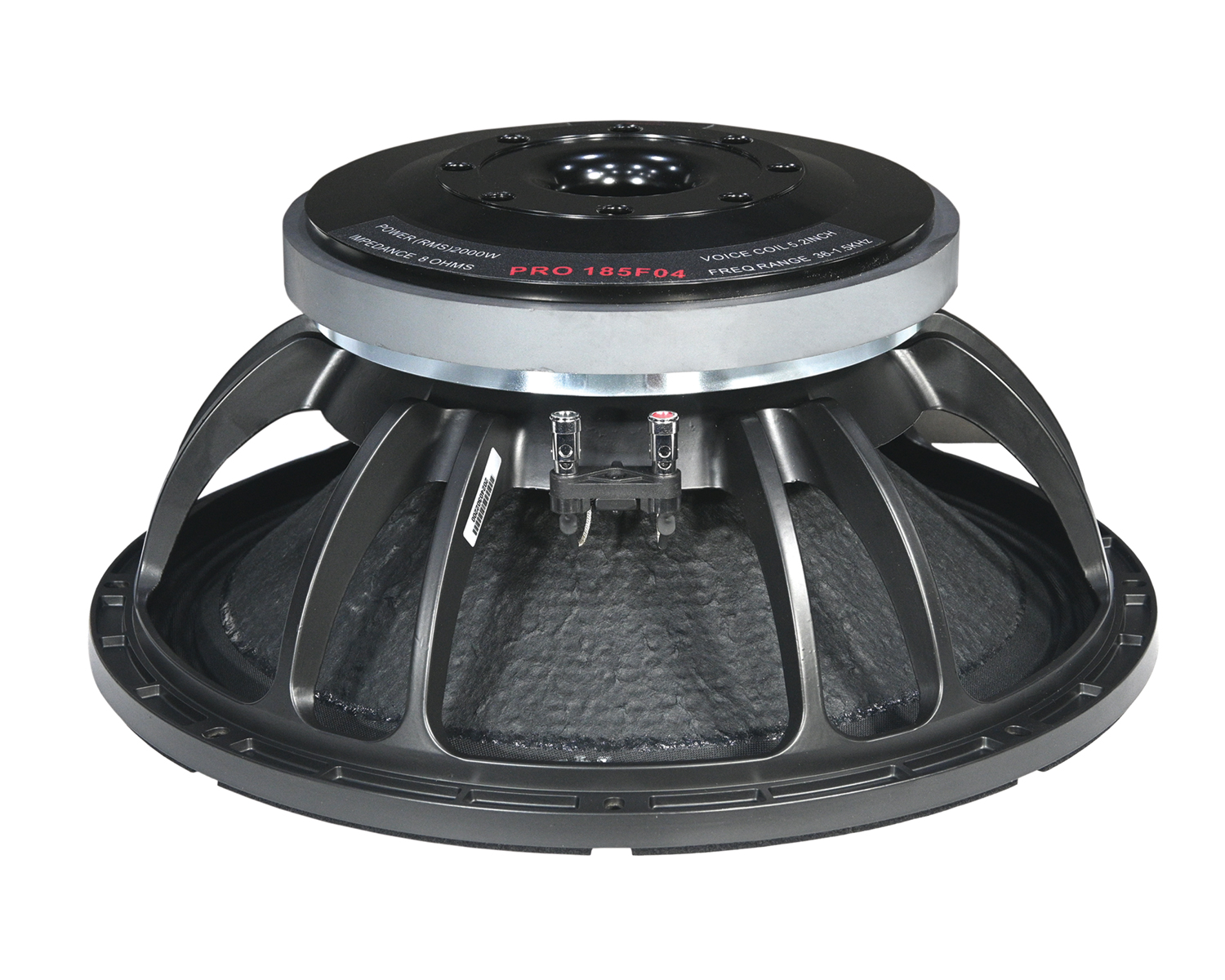

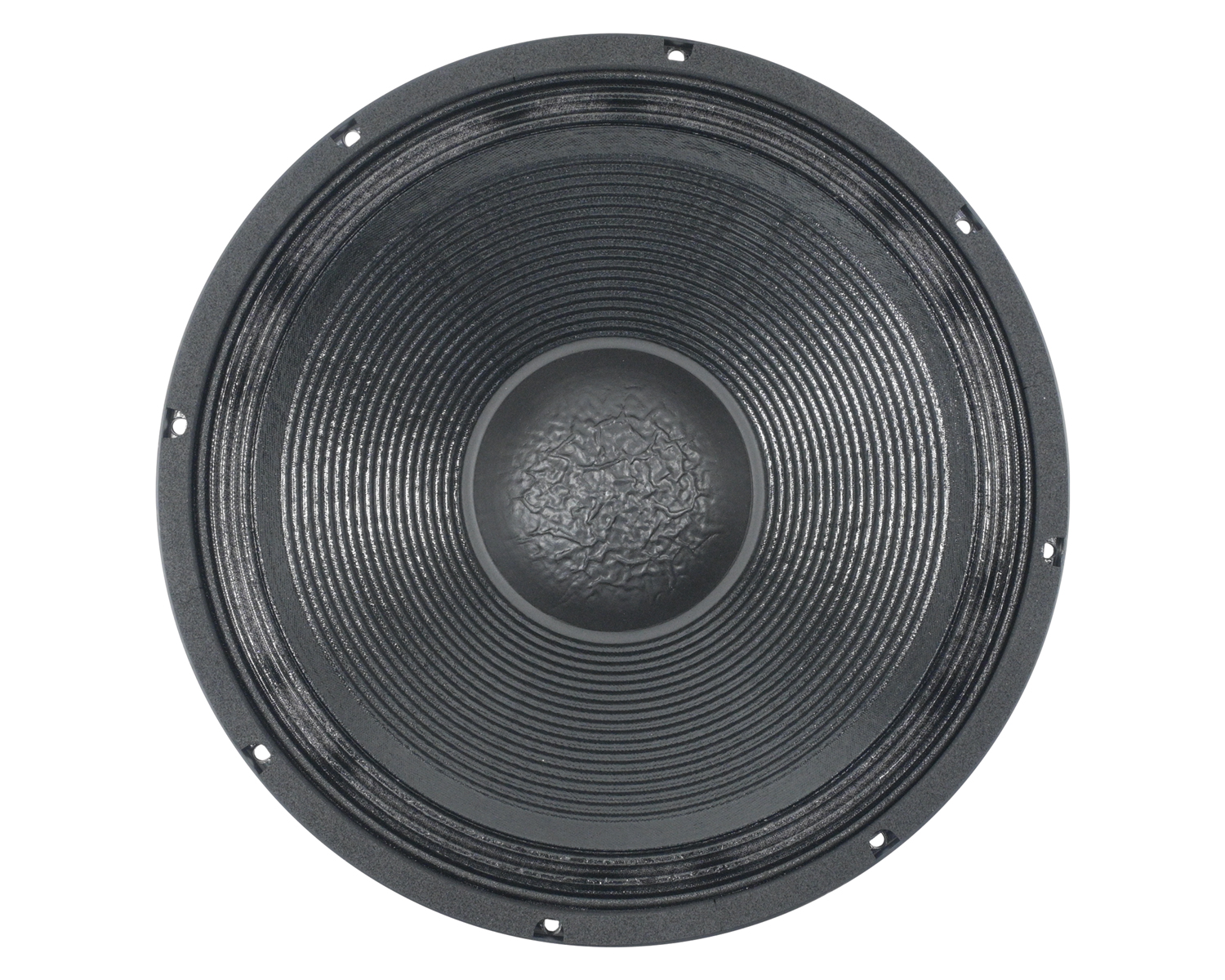

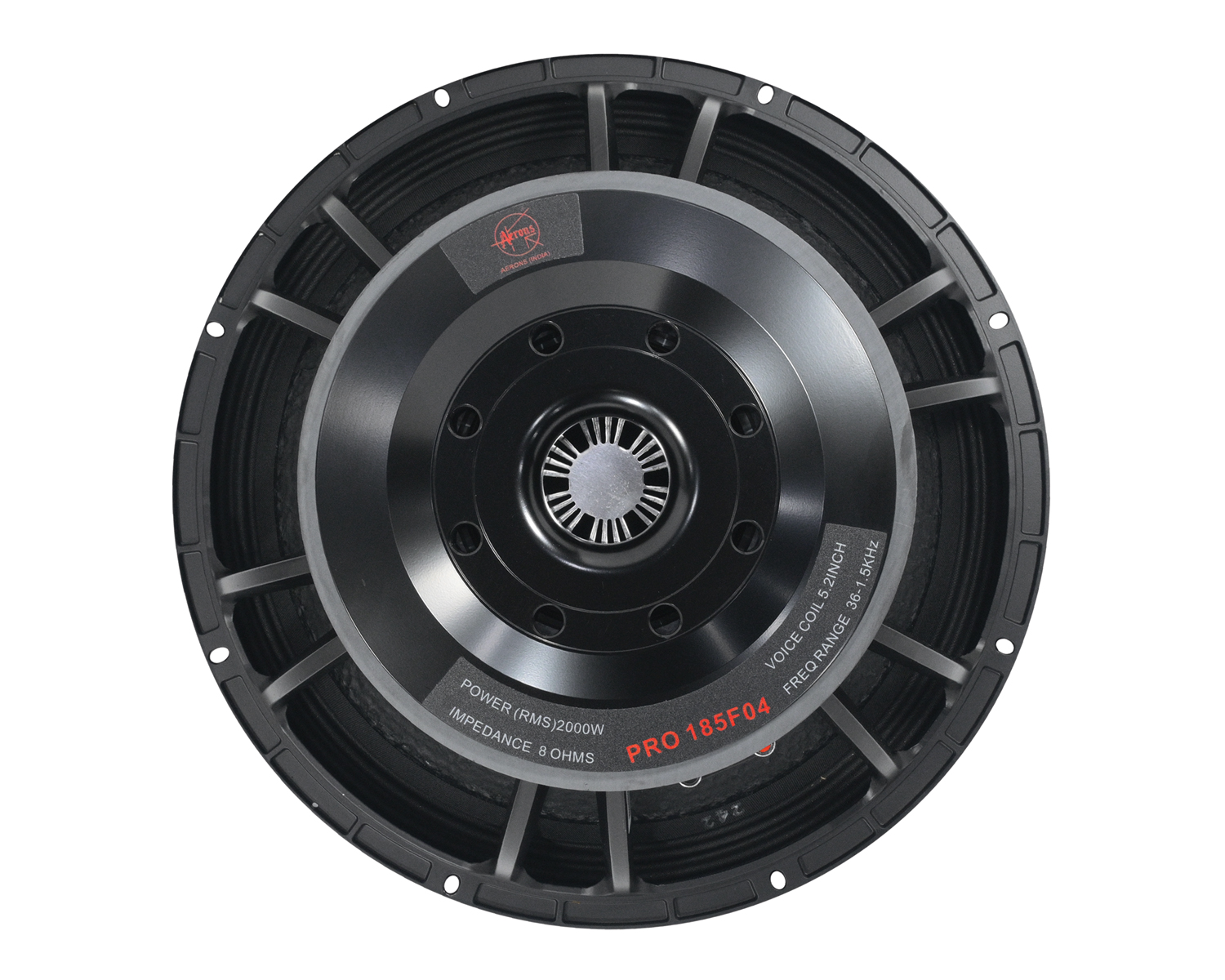

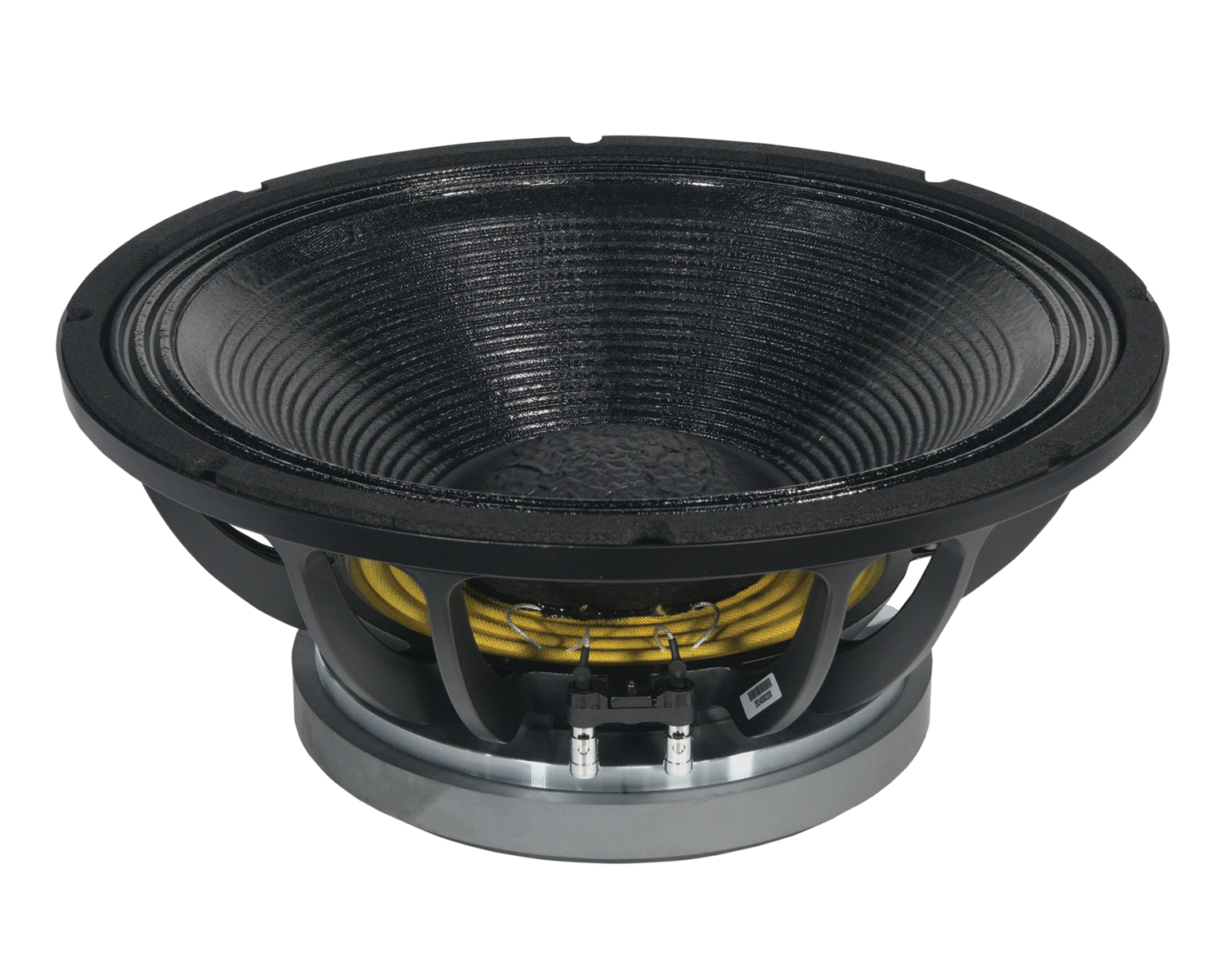

PRO185F04

Introducing the Aerons India PRO185F04, a powerful subwoofer speaker that delivers incredible bass sound. It's perfect for people who want great audio quality without any complications.

This speaker has a big 18-inch size and special features that make it stand out. It has a strong 5.2-inch copper coil inside that can handle a lot of power, so you can turn up the volume without worrying about it getting damaged. Plus, it has a huge magnet that helps create deep, rich bass sounds that fill up any room.

With 2000 watts of power and a wide range of frequencies it can play, from really low to really high, this speaker works well with any type of music or sound system. And because it's sensitive to even the smallest changes in sound, you'll hear every detail clearly.

Built to last, the PRO185F04 has a sturdy aluminum basket that keeps it stable and reduces unwanted vibrations. Whether you're a professional or just love good music, the Aerons India PRO185F04 is the perfect choice for bringing your sound to life.











PRO185F04

GENERAL SPECIFICATIONS

Nominal Diameter

18inch

Nominal Impedance

8ohm

Minimum Impedance

6.2ohm

Nominal Power Handling

2000Watts

Continuous Power Handling

4000Watts

Sensitivity

97dB

Frequency Range

36-1.5KHz

Voice-coil Diameter

130.06mm

Voice-coil Material

Copper

Voice-coil Winding Depth

28 mm

Effective Diaphragm Diameter

212Mm

Kind of layer

In/out

Number of layers

1

Top Plate Thickness

20mm

Spider

Double Silicone

Flux Density

1.15T

Magnet Diameter

280*25mm

Magnet Material

Ferrite

Magnet Grade

Y35

Magnet Gap Depth

12



THIELE SMALL PARAMETERS

Resonance Frequency

Fs

36Hz

DC Resistance

Rte

6.2ohm

Mechanical Factor

Qms

8.5

Electrical Factor

Qes

0.32

Total Factor

Qts

0.31

BL Factor

BL

33.2T-m

Effective Moving Mass

Mms

230gr

Equivalent Cas Air Load

Vas

149liter

Effective Piston Area

Sd

1.225 m’2

Max. Linear Excursion

Xmax

11mm

Half Space Efficiency

Eff

2.78%

Efficiency Bandwidth Product

EBP

121

Compliance Value

Cms

0.07



MOUNTING AND SHIPPING INFORMATION

Overall Diameter

460mm

Buffer Cut-out Dia.

423mm

Bolt Circle Dia.

440mm

Bolt Hole Dia.

7.0mm

Gasket Thickness

20mm

Overall Depth

240mm

Magnet Dia.

280mm

Net Weight

19.2 kg
