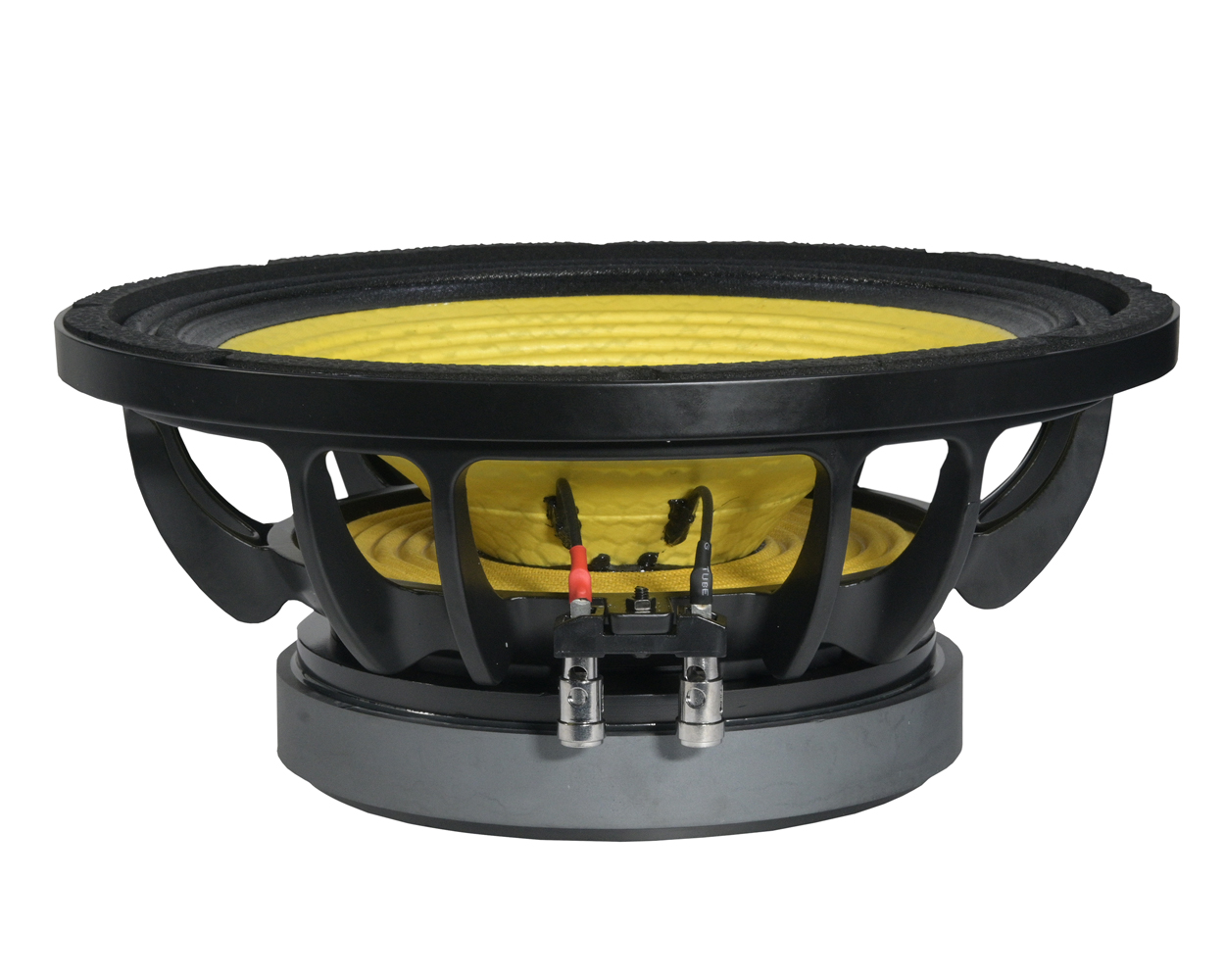

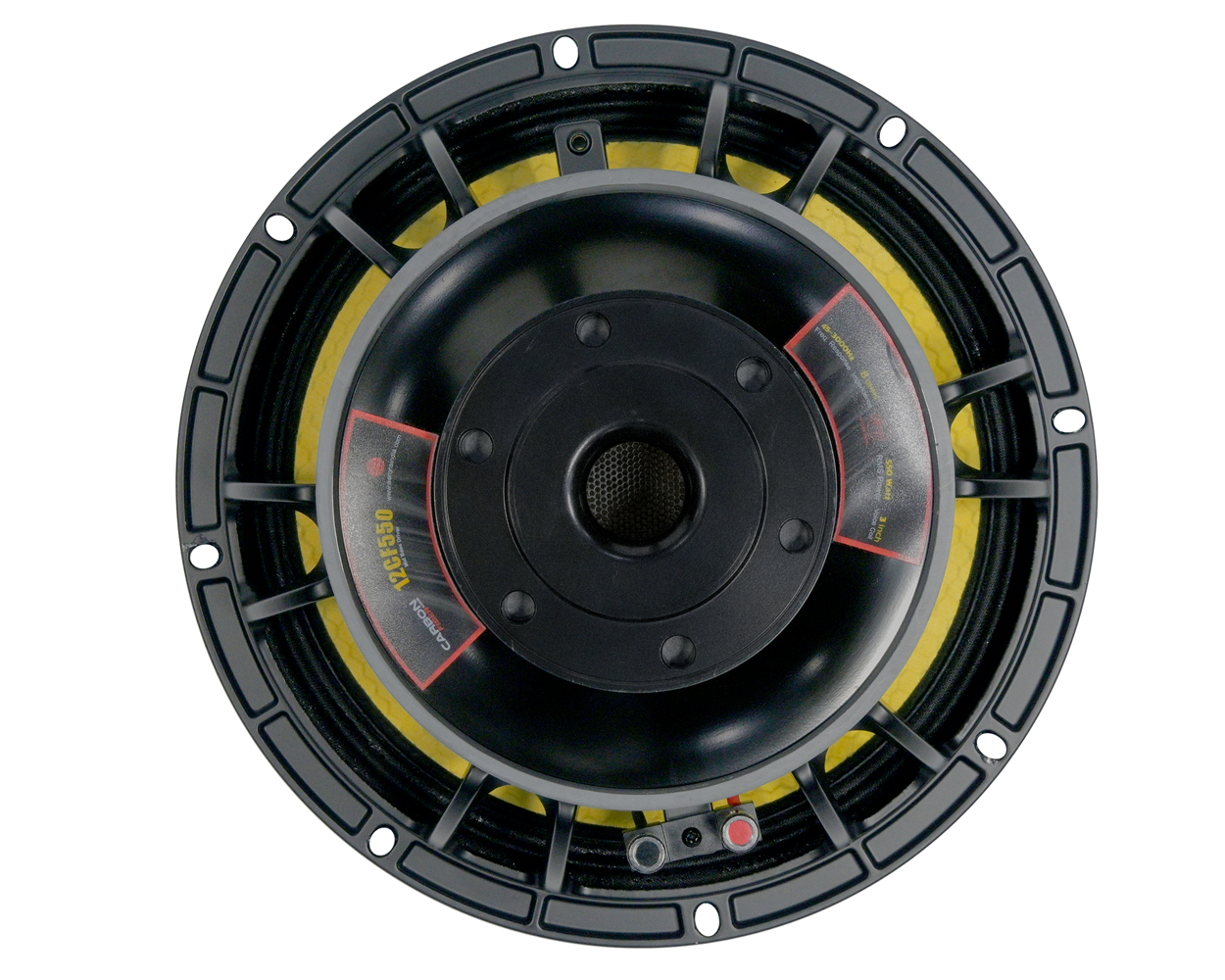

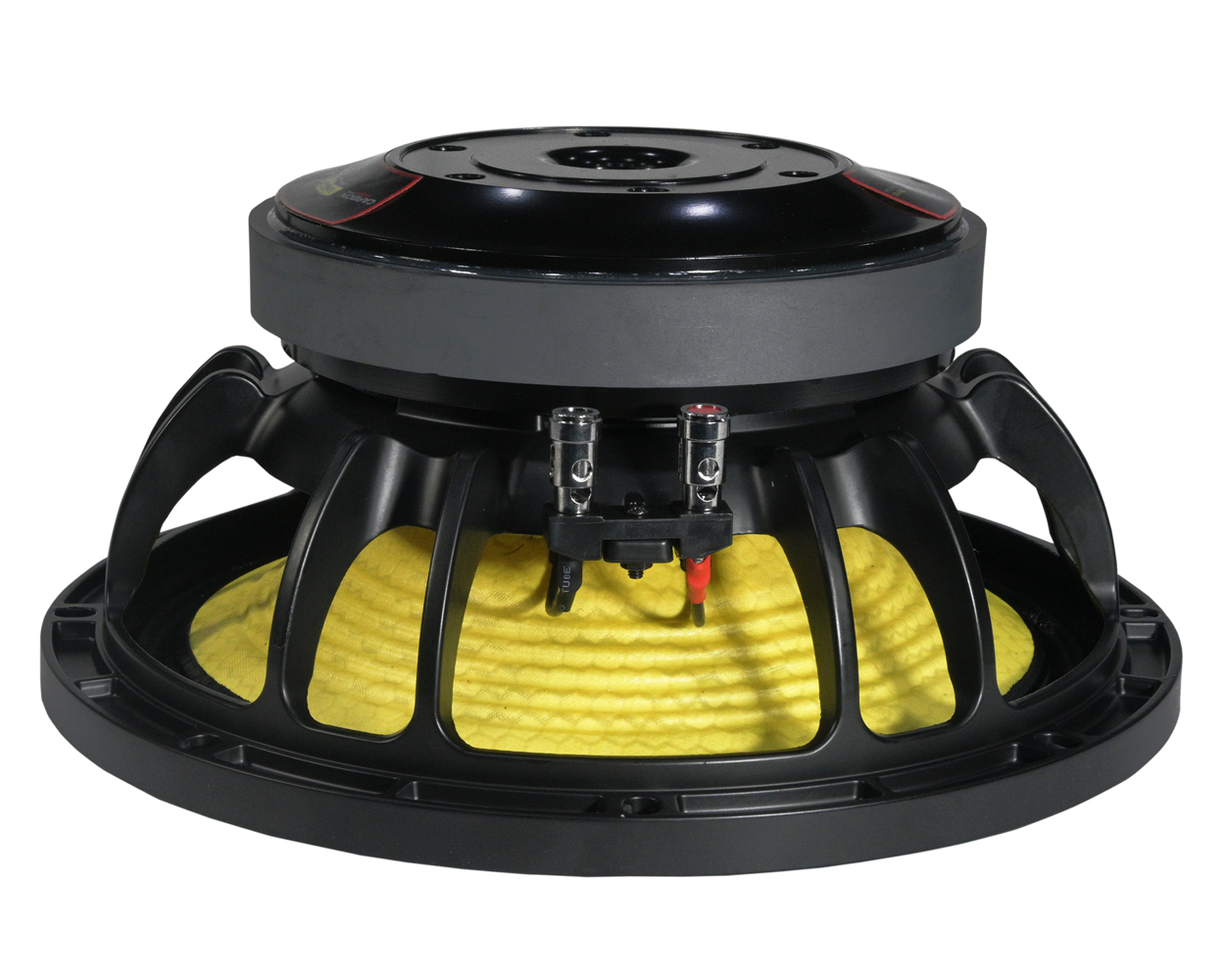

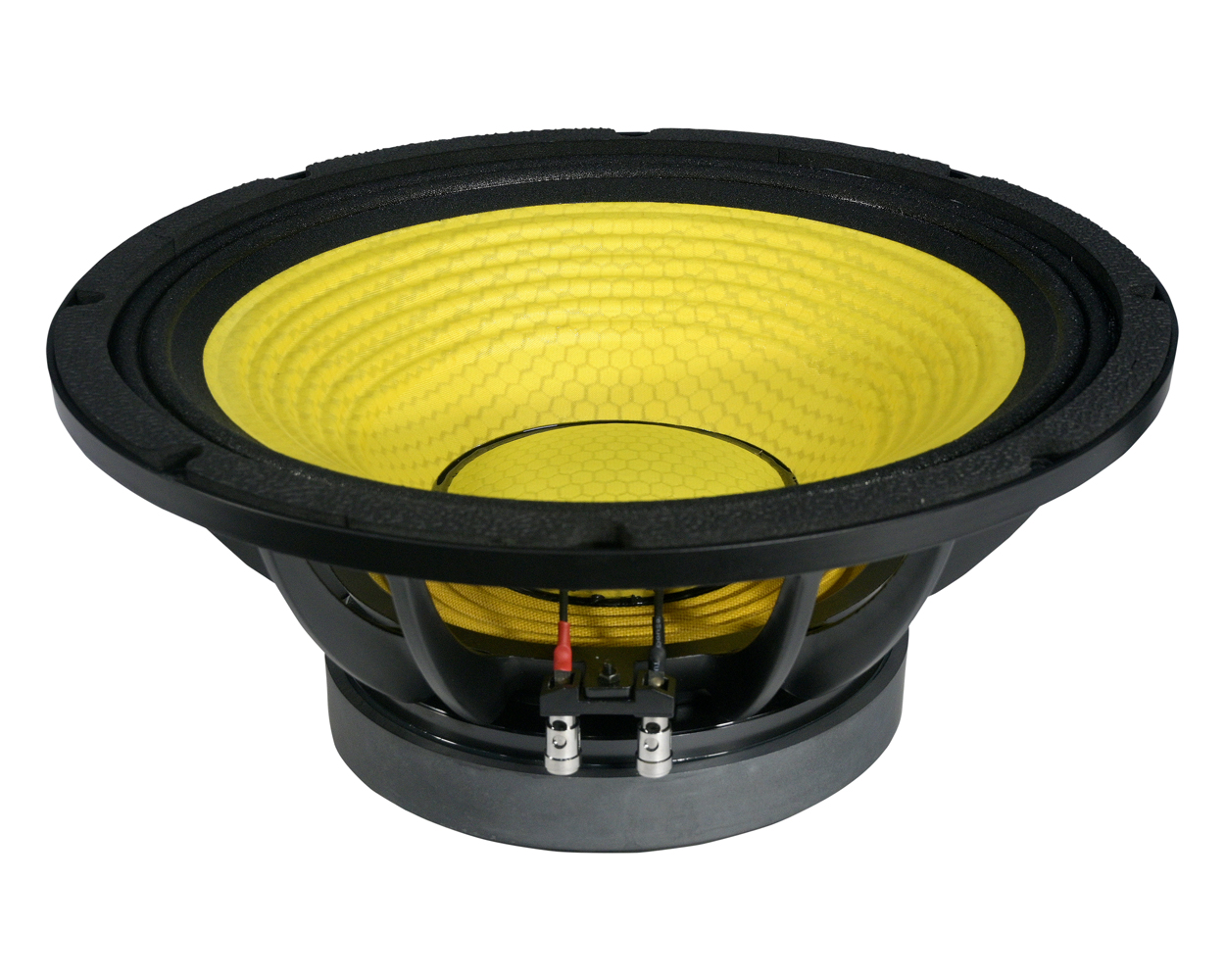

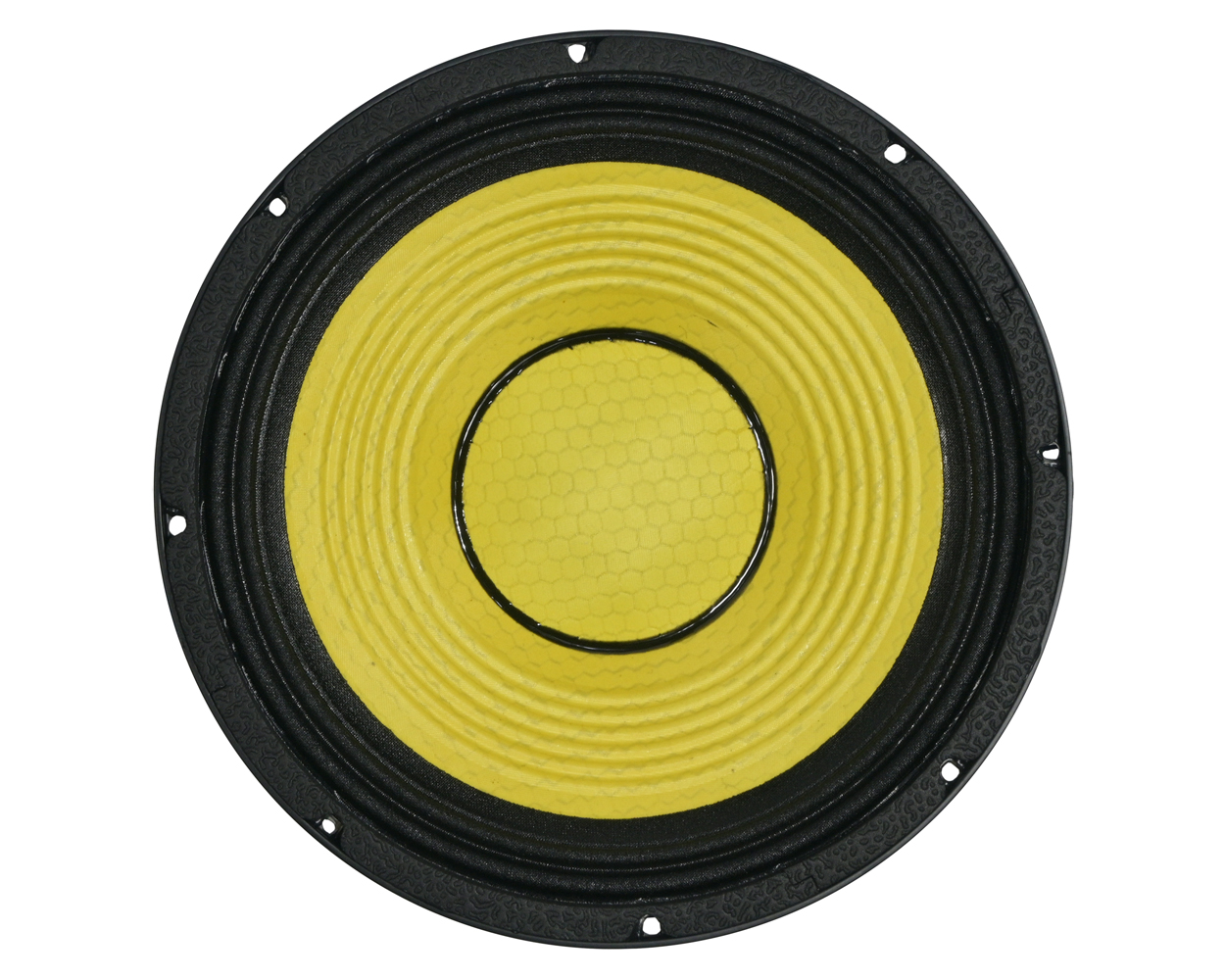

12CF550

12CF550

Introducing the latest addition to the Aerons India family: the 12CF550. This 12-inch mid-bass speaker is designed to elevate your audio experience with its cutting-edge features and exceptional performance.

With a carbon fiber cone and a 3-inch copper voice coil, the 12CF550 delivers clear and precise sound reproduction across the entire frequency range. Whether you're listening to music, watching movies, or gaming, you'll enjoy rich, immersive sound with every beat.

With 550 watts of RMS power and a wide frequency range from 55Hz to 3000Hz, the 12CF550 is versatile enough to handle any type of audio content. Plus, with a sensitivity rating of 99dB, it delivers impressive output levels with minimal distortion, ensuring that your music always sounds its best.

Built to last, the 12CF550 features an aluminum die-cast basket that provides strength and stability while minimizing resonance for cleaner, more accurate sound reproduction. Whether you're a music enthusiast or a professional audio engineer, the Aerons India 12CF550 is the perfect choice for bringing your audio to life.











12CF550

GENERAL SPECIFICATIONS

Nominal Diameter

12inch

Nominal Impedance

8ohm

Minimum Impedance

5.5ohm

Nominal Power Handling

550Watts

Continuous Power Handling

1100Watts

Sensitivity

99dB

Frequency Range

55-3000Hz

Voice-coil Diameter

75.5mm

Voice-coil Material

Copper clad aluminium

Voice-coil Winding Depth

16 mm

Effective Diaphragm Diameter

260Mm

Kind of layer

out

Number of layers

2

Top Plate Thickness

10mm

Spider

Polyester and cotton blended

Flux Density

1.0T

Magnet Diameter

200*25mm

Magnet Material

Ferrite

Magnet Grade

Y35

Magnet Gap Depth

10



THIELE SMALL PARAMETERS

Resonance Frequency

Fs

70Hz

DC Resistance

Rte

5.7ohm

Mechanical Factor

Qms

5.82

Electrical Factor

Qes

0.403

Total Factor

Qts

0.377

BL Factor

BL

20.713T-m

Effective Moving Mass

Mms

68.9gr

Equivalent Cas Air Load

Vas

32.3liter

Effective Piston Area

Sd

0.55 m’2

Max. Linear Excursion

Xmax

4mm

Half Space Efficiency

Eff

2.67%

Efficiency Bandwidth Product

EBP

175

Compliance Value

Cms

0.074



MOUNTING AND SHIPPING INFORMATIONS

Overall Diameter

315mm

Buffer Cut-out Dia.

284mm

Bolt Circle Dia.

297mm

Bolt Hole Dia.

7.0mm

Gasket Thickness

9mm

Overall Depth

143mm

Magnet Dia.

200mm

Net Weight

8 kg
